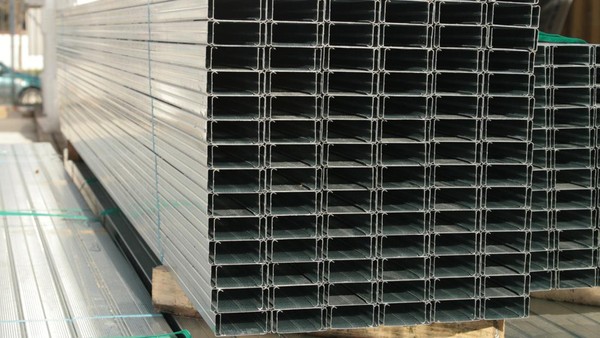

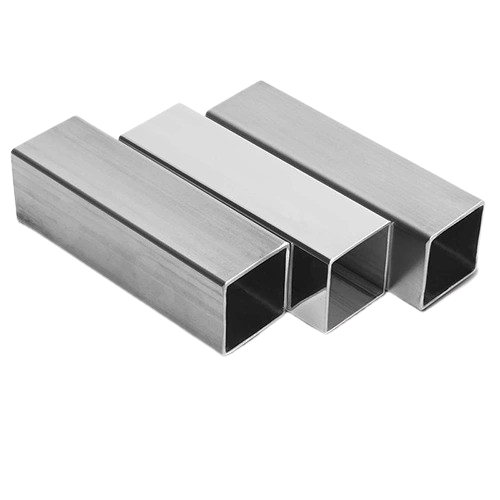

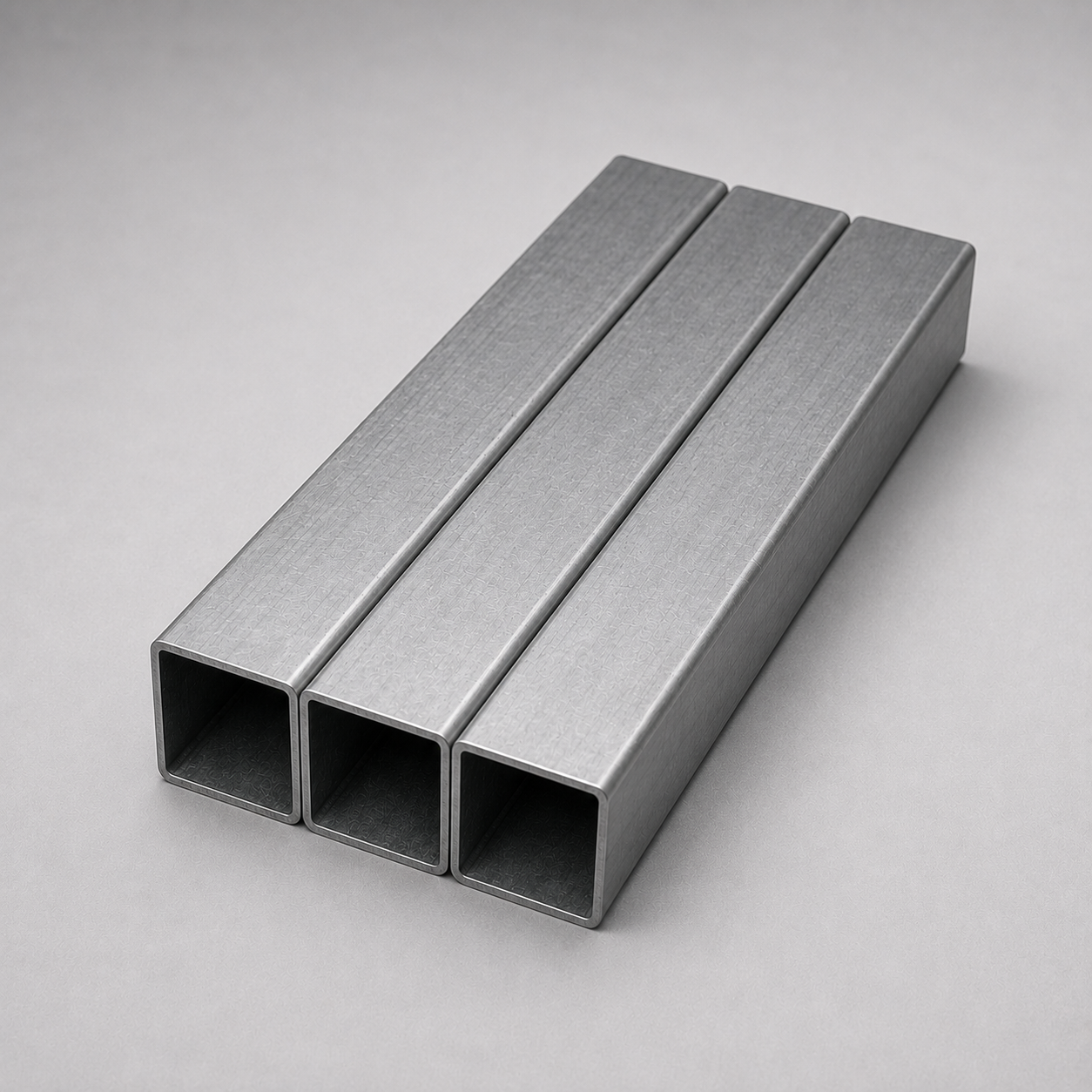

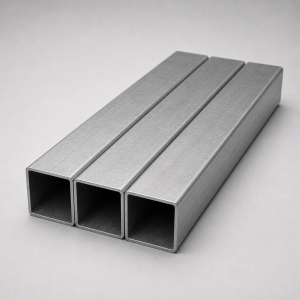

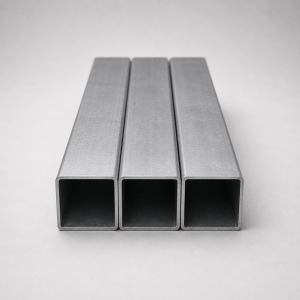

Pipa Hollow merupakan baja berbentuk pipa berongga dengan penampang persegi atau persegi panjang yang dirancang untuk memberikan kombinasi antara kekuatan struktural, efisiensi material, dan tampilan yang rapi. Dengan bobot yang relatif ringan namun tetap kokoh, Pipa Hollow menjadi salah satu material yang banyak digunakan dalam berbagai kebutuhan konstruksi, fabrikasi, dan aplikasi arsitektural.
Material ini memiliki dimensi yang presisi serta mudah diproses melalui pemotongan, pengelasan, pembentukan, dan perakitan, sehingga memberikan fleksibilitas tinggi dalam berbagai proyek. Selain memiliki performa struktural yang baik, Pipa Hollow juga menawarkan hasil akhir yang lebih estetis, menjadikannya pilihan ideal untuk aplikasi yang mengutamakan fungsi sekaligus tampilan.
Di PT Kinmasaru Ranggun Mandiri, kami menyediakan Pipa Hollow dalam berbagai ukuran, ketebalan, dan spesifikasi untuk memenuhi kebutuhan konstruksi, manufaktur, maupun fabrikasi. Produk kami banyak diaplikasikan pada rangka kanopi, plafon, partisi, pagar, teralis, railing, furniture, struktur ringan, hingga berbagai kebutuhan arsitektural dan industri lainnya dengan kualitas material yang terjamin.
| Size | t walt (nom) |
Weight | Area | Properties | Plastic Modulus Zplx = Zply |
Torsional | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| b | h | Moment Inertia lx = ly |
Section Modulus Zx = Zy |
Radius of Gyration lx = ly< |
Inertia J |
Modulus C |
||||
| (mm) | (mm) | (mm) | (kg/m) | (cm2) | (cm2) | (cm3) | (cm) | (cm3) | (cm4) | (cm3) |
| 38 | 38 | 1.8 | 1.98 | 2.52 | 5.4 | 2.850 | 1.465 | 3.39 | 8.76 | 4.29 |
| 38 | 38 | 2.0 | 2.18 | 2.78 | 5.9 | 3.096 | 1.456 | 3.70 | 9.60 | 4.67 |
| 38 | 38 | 2.3 | 2.51 | 3.20 | 6.6 | 3.484 | 1.439 | 4.21 | 10.95 | 5.27 |
| 38 | 38 | 2.8 | 2.94 | 3.74 | 7.5 | 3.950 | 1.417 | 4.48 | 12.66 | 5.99 |
| 38 | 38 | 3.0 | 3.11 | 3.97 | 7.9 | 4.132 | 1.407 | 5.10 | 13.35 | 6.28 |
| 40 | 40 | 1.8 | 2.09 | 2.67 | 6.4 | 3.191 | 1.547 | 3.78 | 10.29 | 4.80 |
| 40 | 40 | 2.0 | 2.31 | 2.94 | 6.9 | 4.470 | 1.537 | 4.13 | 11.28 | 5.23 |
| 40 | 40 | 2.3 | 2.62 | 3.33 | 7.7 | 3.863 | 1.523 | 4.64 | 12.70 | 5.83 |
| 40 | 40 | 2.8 | 3.11 | 3.96 | 8.9 | 4.449 | 1.498 | 5.43 | 14.92 | 6.74 |
| 40 | 40 | 3.0 | 3.30 | 4.21 | 9.3 | 4.661 | 1.488 | 5.71 | 15.75 | 7.07 |
| 45 | 45 | 2.0 | 2.62 | 3.34 | 10.1 | 4.497 | 1.741 | 5.32 | 16.30 | 6.77 |
| 45 | 45 | 2.3 | 2.98 | 3.76 | 11.3 | 5.026 | 1.727 | 6.00 | 18.41 | 7.58 |
| 45 | 45 | 2.8 | 3.55 | 4.52 | 13.1 | 5.829 | 1.703 | 7.05 | 21.73 | 8.81 |
| 45 | 45 | 3.0 | 3.77 | 4.81 | 13.8 | 6.124 | 1.693 | 7.44 | 22.99 | 9.27 |
| 45 | 45 | 3.2 | 3.99 | 5.09 | 14.4 | 6.404 | 1.683 | 7.82 | 24.20 | 9.71 |
| 48 | 48 | 2.0 | 2.81 | 3.58 | 12.4 | 5.178 | 1.864 | 6.11 | 19.33 | 7.79 |
| 48 | 48 | 2.3 | 3.19 | 4.07 | 13.9 | 5.798 | 1.849 | 6.89 | 22.54 | 8.74 |
| 48 | 48 | 2.8 | 3.82 | 4.86 | 16.2 | 6.747 | 1.825 | 8.12 | 26.66 | 10.19 |
| 48 | 48 | 3.0 | 4.06 | 5.17 | 17.0 | 7.097 | 1.816 | 8.58 | 28.23 | 10.73 |
| 48 | 48 | 3.2 | 4.29 | 5.47 | 17.8 | 7.432 | 1.806 | 9.03 | 29.76 | 11.25 |
| 50 | 50 | 2.0 | 2.93 | 3.74 | 14.0 | 5.658 | 1.946 | 6.66 | 22.63 | 8.51 |
| 50 | 50 | 2.3 | 3.34 | 4.25 | 15.9 | 6.343 | 1.931 | 7.52 | 25.61 | 9.55 |
| 50 | 50 | 2.8 | 3.99 | 5.08 | 18.5 | 7.395 | 1.907 | 8.87 | 30.33 | 11.16 |
| 50 | 50 | 3.0 | 4.25 | 5.41 | 19.5 | 7.786 | 1.897 | 9.39 | 32.31 | 11.76 |
| 50 | 50 | 3.2 | 4.50 | 5.73 | 20.4 | 8.160 | 1.887 | 9.89 | 33.89 | 12.34 |
| 60 | 60 | 2.0 | 3.56 | 4.54 | 25.1 | 8.380 | 2.354 | 9.79 | 39.79 | 12.59 |
| 60 | 60 | 2.3 | 4.06 | 5.17 | 28.3 | 9.437 | 2.340 | 11.09 | 45.16 | 14.19 |
| 60 | 60 | 2.8 | 4.87 | 6.20 | 33.3 | 11.088 | 2.315 | 13.16 | 53.77 | 16.70 |
| 60 | 60 | 3.0 | 5.19 | 6.61 | 35.1 | 11.711 | 2.306 | 13.95 | 57.09 | 17.65 |
| 60 | 60 | 3.2 | 5.50 | 7.01 | 36.9 | 12.313 | 2.296 | 14.73 | 60.34 | 18.57 |
| 70 | 70 | 2.0 | 4.19 | 5.34 | 40.7 | 11.635 | 2.762 | 13.52 | 63.96 | 17.48 |
| 70 | 70 | 2.3 | 4.86 | 6.19 | 46.7 | 13.340 | 2.746 | 15.59 | 73.90 | 20.05 |
| 70 | 70 | 2.8 | 5.75 | 7.32 | 54.3 | 15.527 | 2.724 | 18.28 | 86.92 | 23.36 |
| 70 | 70 | 3.0 | 6.13 | 7.81 | 57.5 | 16.435 | 2.714 | 19.41 | 92.42 | 24.74 |
| 70 | 70 | 3.2 | 6.50 | 8.29 | 60.6 | 17.318 | 2.705 | 20.53 | 97.83 | 26.08 |
| 70 | 70 | 4.0 | 7.97 | 10.15 | 72.0 | 20.604 | 2.666 | 24.75 | 118.52 | 31.11 |
| 70 | 70 | 4.5 | 8.85 | 11.27 | 78.6 | 22.463 | 2.642 | 27.22 | 130.67 | 33.98 |
| 75 | 75 | 2.0 | 4.50 | 5.74 | 50.5 | 13.463 | 2.967 | 15.61 | 79.05 | 20.22 |
| 75 | 75 | 2.3 | 5.23 | 6.66 | 58.0 | 15.458 | 2.950 | 18.01 | 91.42 | 23.20 |
| 75 | 75 | 2.8 | 6.19 | 7.88 | 67.6 | 18.026 | 2.928 | 21.16 | 107.66 | 27.11 |
| 75 | 75 | 3.0 | 6.60 | 8.41 | 71.6 | 19.097 | 2.919 | 22.48 | 114.54 | 28.73 |
| 75 | 75 | 3.2 | 7.01 | 8.93 | 75.5 | 20.141 | 2.909 | 23.79 | 121.32 | 30.31 |
| 75 | 75 | 4.0 | 8.59 | 10.95 | 90.2 | 24.048 | 2.870 | 28.76 | 147.32 | 36.28 |
| 75 | 75 | 4.5 | 9.55 | 12.17 | 98.5 | 26.278 | 2.846 | 31.68 | 162.32 | 39.71 |
| 90 | 90 | 2.3 | 6.23 | 7.93 | 100.8 | 22.398 | 3.565 | 25.93 | 157.53 | 33.63 |
| 90 | 90 | 2.8 | 7.51 | 9.56 | 119.9 | 26.644 | 3.541 | 31.05 | 189.07 | 40.03 |
| 90 | 90 | 3.0 | 8.01 | 10.21 | 127.3 | 28.284 | 3.531 | 33.04 | 201.42 | 42.51 |
| 90 | 90 | 3.2 | 8.51 | 10.85 | 134.5 | 29.889 | 3.521 | 35.01 | 213.61 | 44.95 |
| 90 | 90 | 4.0 | 10.48 | 13.35 | 161.9 | 35.980 | 3.483 | 42.58 | 260.80 | 54.17 |
| 90 | 90 | 4.5 | 11.67 | 14.87 | 177.9 | 39.524 | 3.459 | 47.08 | 289.02 | 59.58 |
| 100 | 100 | 2.3 | 6.95 | 8.85 | 139.7 | 27.944 | 3.973 | 32.26 | 217.48 | 41.95 |
| 100 | 100 | 2.8 | 8.39 | 10.68 | 166.6 | 33.323 | 3.949 | 38.69 | 261.43 | 50.05 |
| 100 | 100 | 3.0 | 5.96 | 11.41 | 177.0 | 35.408 | 3.939 | 41.21 | 278.68 | 53.19 |
| 100 | 100 | 3.2 | 9.52 | 12.13 | 187.3 | 37.454 | 3.930 | 43.69 | 295.73 | 56.28 |
| 100 | 100 | 4.0 | 11.73 | 14.96 | 226.3 | 45.268 | 3.891 | 53.30 | 362.01 | 68.10 |
| 100 | 100 | 4.5 | 13.08 | 16.67 | 249.3 | 49.854 | 3.867 | 59.04 | 401.87 | 75.07 |
